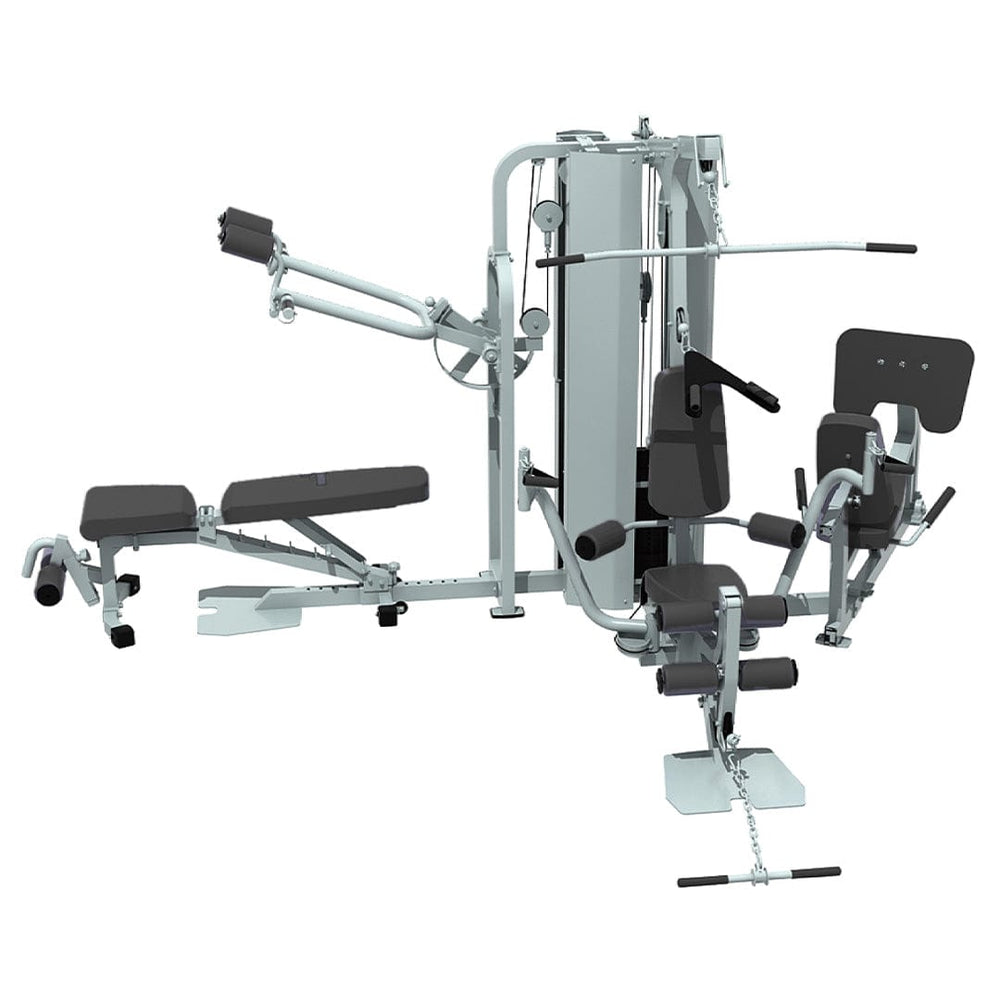

Impulse Encore Studio Two Station Multi-Station Gym IF2060, 2x200Lb Stack

IF2060 2 stations home gym provides a comprehensive body exercise solution. The equipment covers a small area, features a compact structure and smooth movement. The exerciser could easily work out by adjusting the weight pin and lock pin. The simple and convenient operation is suitable for small-sized fitness clubs and corporate fitness centers.

LEG PRESS ATTACHMENT OPTIONAL $1749

Specifications

2 x 91 kg cast iron weight stack, Dual station, chest press, lat pull, Ab crunch, leg curl, leg extension, low row, upright row, squat station, metal weight shrouds, adjustable seat and backrest, flat bench heavy-duty double-stitched upholstery, thick foam inner, high-quality pulley wheels, aircraft steel cables, powder-coated, pop pin adjustments for all stations

Features

• Compact - space-efficient design requires minimal floor space.
• Easy-to-use - flexible adjustments and pre-stretch features allow for optimal exercise positions.
• Rubber grips prevent slipping.

 Frame

• Tubing: 2.5-2.75mm thickness, square tubing from 30 x 60mm to 40 x 80 mm, electro-welded to maximum integrity.
• Color: Metallic silver gray
• Finish: Electrostatic powder-coated and heat cured after adhesiveness enhancement pre-treatment for superior durability.

  Weight

• Weight Plates: 25mm machined cast weight plates with fitted precision nylon bushings to ensure a smooth operation on guide rods.
• Guide Rods: 25mm diameter steel shafts, polished with corrosion-resistant plating for smooth operation and rust prevention.
• Weight Range: Low starting weight and full weight range accommodate a wide range of users. The weight stack can be easily reached from the seated position.
• Weight Selection Pin: The weight selection pin is yellow color-coded for easy identification. Magnetic weight selection pin ensures positive locking to plates and is secured to the weight stack.
• Cables: Aircraft-specific 5mm AmericanLoos cable with a 4, 200 lb breaking strength. End fittings tested to 250, 000 cycles using full weight stack.

 Handles and Adjustments

• Handles: Slip-resistant custom-molded rubber grip assembly with machined alloy end-cap and retaining ring. Push grips are oversized to 35mm in diameter. Pull grips and handlebars are oversized to 32mm diameter for optimal gripping.
• Starting Position Adjustment: Hardened spring-loaded snap-pin assembly with an easy-to-grip pull handle for smooth position adjustment. The pull handle is yellow color-coded for easy identification.
• Seat/Back Pad Adjustments: Custom-molded sleeve-tube inserts in between inner and outer tubing ensures stable, low friction seat adjustments. Ratcheting seat adjustment with push-to-release lever is yellow color-coded for easy identification. Viewing window and etched numbers on sleeve-tube for accurate positioning of seat and back pad.

 Pulleys

• ABEC-rated bearings for added durability and smooth feel.
• Glass fiber reinforced nylon pulleys with deep V-groove provides secure cable seating and fluid bearing rotation.

 Bearings and Pivot Joints

• Pillow block motor grade rotary bearings provided on machines with a cam assembly (Arm Curl, Leg Extension, Leg Curl, Abdominal and Back Extension).
• Axles: 25mm solid steel pivot axles with oil-impregnated bronze bushings for precise alignment and frictionless movement.

 Upholstery

• Fabric: Premium quality industrial vinyl with protective coating results in long-lasting easy-to-clean upholstery pads and rollers. Fabric meets or exceeds universal fire regulations.
• Construction: 19mm thick plywood backing followed by 38mm thick foam core covered by industrial vinyl. The total thickness is 60mm.

 Weight Stack

• Weight stack tower top securely covers the pulley mechanism.
